| Port Name : Ennore Port Limited |
Terminal Name : ETTPL |
|
| |
No. |
Water Depth Approaches |
Approach 1 |
W1 |
Water Depth in Approaches |
-16.0 M |
W2 |
Minimum Under Keel Clearance in Approaches |
2.5 M |
W3 |
Maximum Draught in Approaches |
13.5 M |
W4 |
Transit on Tide (High Water, Low Water, NA) |
NO |
|
| |
No. |
Water Depth Alongside |
MLT |
W5 |
Water Depth Alongside Berth |
15.0 M |
W6 |
Minimum Under Keel Clearance Alongside Berth |
1.5 M |
W7 |
Maximum Draught Alongside |
13.5 M |
W8 |
Are Tides Used To Calculate Draught |
NO |
|
|
| |
No. |
General Information |
MLT |
G1 |
Pilot Boarding Point |
1.5 NM SE of Fairway Buoy |
G2 |
Berth Name / Number |
MLT - 1 |
G3 |
Berth Operator |
ETTPL |
G4 |
Berth Position |
North Breakwater |
G5 |
Berth Type |
Alongside |
G6 |
Berth Length |
360 M |
G7 |
Type of Bottom |
Sand |
G8 |
Dock Water Density |
1.025 Kg/m 3 |
|
| |
| Terminal Contact 1 |
C1 |
Name |
Mr. N M J Durairaj – Vice President |
C2 |
Telephone Number |
+919600046416 |
| C3 |
Facsimile Number |
044 25219696 |
| C4 |
E-mail Address (Important - Please complete) |
|
| C5 |
Address |
#23, M/s ETTPL, 3rd floor, Rajaji Salai, Chennai - 600001 |
| C6 |
Website, Terminal and/or Port |
|
|
| |
| Terminal Contact 2 |
C1 |
Name |
Mr. PR Nambiar - General Manager |
C2 |
Telephone Number |
+919840883889 |
| C3 |
Facsimile Number |
044 25219696 |
| C4 |
E-mail Address (Important - Please complete) |
|
| C5 |
Address |
#23, M/s ETTPL, 3rd floor, Rajaji Salai, Chennai - 600001 |
| C6 |
Website, Terminal and/or Port |
|
|
| |
| Terminal Contact 3 |
C1 |
Name |
Mr. G Murali Krishna – Terminal Manager |
C2 |
Telephone Number |
+919940666336
|
| C3 |
Facsimile Number |
044 27950117 |
| C4 |
E-mail Address (Important - Please complete) |
|
| C5 |
Address |
M/S.ETTPL, Inside Ennore port, Vallur post, Thiruvallur district, Chennai-600120. |
| C6 |
Website, Terminal and/or Port |
|
|
| |
|
| |
|
| |
REF |

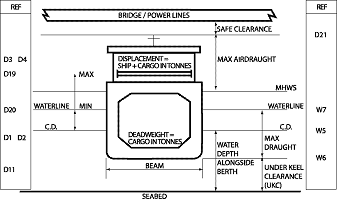

Berth Dimensions |
Berth 1 |
D1 |
Maximum Summer Deadweight |
150,000 mt |
D2 |
Minimum Summer Deadweight |
No Restriction |
D3 |
Maximum Berthing Displacement |
150,000 mt |
D4 |
Maximum Alongside Displacement |
150,000 mt |
D5 |
Minimum Displacement |
No Restriction |
D6 |
Deadweight/Displacement Exceptions |
Nil |
D7 |
Maximum Cargo Carrying Cubic Capacity |
No restrictions |
D8 |
Minimum Cargo Carrying Cubic Capacity |
No Restriction |
D9 |
Maximum Length Overall (LOA) |
300 M |
D10 |
Minimum Length Overall (LOA) |
50 M |
D11 |
Max Beam |
40 M |

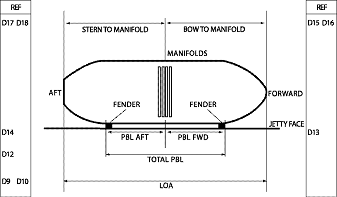

D12 |
Minimum Total Parallel Body Length |
35 M |
D13 |
Minimum PBL Forward of Manifold |
15 M |
D14 |
Minimum PBL Aft of Manifold |
15 M |
D15 |
Maximum Bow to Manifold Distance |
No restriction |
D16 |
Minimum Bow to Manifold Distance |
No restriction |
D17 |
Maximum Stern to Manifold Distance |
No restriction |
D18 |
Minimum Stern to Manifold Distance |
No restriction |
D19 |
Maximum Manifold Height Above Water |
20.0 M |
D20 |
Minimum Manifold Height Above Water |
No restriction |
D21 |
Maximum Air draught |
No restriction |
D22 |
Minimum Derrick / Crane SWL |
Ship’s cranes |
|
| |
| Additional Information |
| |
| REF |
Extra Information and Facilities |
Berth 1 |
| A2 |
COW |
Subject to permission from Terminal |
| A3 |
Gangway |
Ship’s Gangway |
| A4 |
Towage Lines |
Tugs lines |
| A5 |
Minimum Mooring Arrangement |
Dwt 50,000 & above 3,2,2 Dwt below 50,000mt 2,2,2 |
| A6 |
Manifold Normally Used |
8” Dia; Flanges are of ASA / 150 |
| A7 |
Any Special Manifold Requirements |
- |
A8 |
Ballast / Slop Reception Facilities Available |
Slop, yes, based on space available and compatibility of slops. |
A9 |
Are Fuel Oil Bunkers Available |
Yes, Through agent. |
A10 |
Are Diesel Oil Bunkers Available |
Yes, Through agent. |
A11 |
Is Fresh Water Available |
Yes, Through agent |
| A12 |
Garbage Disposal Facilities |
Disposal of Oily & plastic waste thru Approved agency |
|
|
| |
|
|
|
|
|
